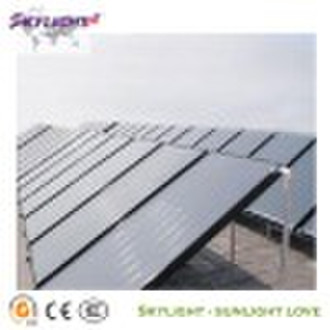

Flat Solar Collectors

Flat Solar Collectors 1. Coating 2. Full copper absorber plate 3. Disposed special insulation 4. Gasket and sealant 5. Back sheet 6. Tempered glass 7. Aluminum frame Skylight Flat Plate Collector Technical Parameter 1. Sky/light Dimension (L*W*H) mm: 2000*1060*70/ 2000*1060*80/ 2000*1060*90 2. Skylight Core: all copper, ultrasonic welding 3. Skylight Coating: black chrome/ Blue titanium 4. Skylight Absorber material &thickness: copper, 0.15mm 5. Sky*light Header pipe material, dimension and quantity: copper T2; Φ25*0.6*1060mm; 2pcs 6. Skylight Riser pipe material, dimension and quantity: copper T2; Φ10*0.5/Φ12*0.6mm; 8pcs 7. Skylight Material & thickness of glass: tempered glass: 4mm /fabric tempered glass: 4mm/low iron fabric tempered glass: 3.2 8. Sky*light Material & thickness of frame: aluminum, 0.8mm 9. Skylight Insulation of material: high pressure high density polyurethane foam 10. Skylight Insulation thickness mm: 30 11. Sky+light Material & thickness of the back sheet: embossed aluminum, 0.3mm 12. Skylight Packing: carton 13. Sky-light Packing dimension (two pieces in one carton): 2020*1100*160/ 2020*1100*180/ 2020*1100*20014. Sky-light Net weight: 32kg/33kg/35kg 15. Sky=light Qty of 20' container: 165/145/130pcs 16. Sky*light Qty of 40' container: 340/306/276pcs 17. Sky-light Qty of 40H' container: 390/346/306pcs
