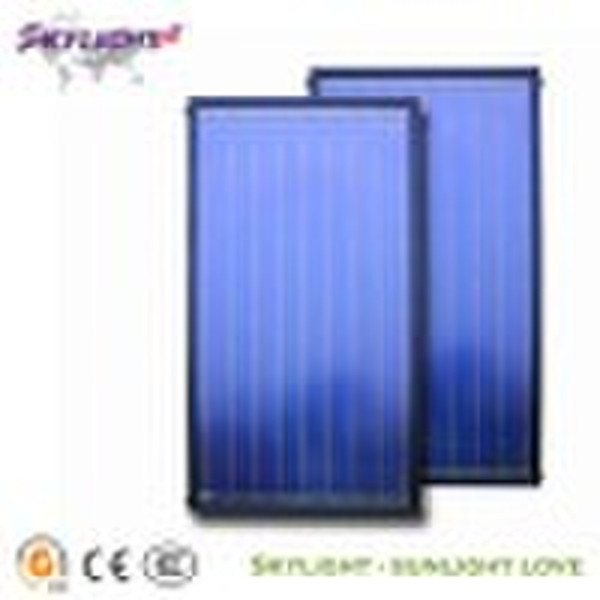

Solar Energy Collector Thermal Heater (Keymark CE

Solar Energy Collector Thermal Heater (Keymark CE BV SGS approved) -10 days lead time 5-yrs guarantee -60% energy cost save -OEM ODM accepted -Best price Feature: Special Anodized aluminum alloy frame to ensure handsome appearance and can accept high pressure without leakage Operation Temperature -33 to 220 Patterned temper glass or low iron temper glass (4mm thickness) is not easy broken with very high transmission and low emission Black chrome or Magnetic blue sputtering coating has very higher absorption rate to ensure the high efficiency. 1) Flat Panel Solar Collector (Coating: Black Chrome & Blue Titanium) Model SL-I-2.0B/T SL-II-2.0B/T SL-III-2.0B/T Dimensions(W*L*H) mm2000*1060*70 2000*1060*80 2000*1060*90 Gross area m22 2 2 Absorber area m21.8 1.8 1.8 Conversion factor η %76.5 77.3 78.1 Loss coefficient a1 w/m2k4.11 3.9 3.55 Loss coefficient a2 w/m2k20.0093 0.0052 0.0022 Fluid content L2.22 2.22 2.22 Maximumoperatingpressure MPa1 1 1 Temperatureofoperation oC(-)35 150 (-)35 150 (-)35 150 Net weight KG32 33 35 Core All copper, ultrasonic welding Coating Black chrome / Blue Titanium Absorptance ≥95%±2% Emittance ≤10%±2% Absorbermaterial&thickness copper T2, δ=0.15mm Headerpipematerial, dimension & quantity copper T2, Φ22*0.7/Φ25*0.6*1060mm, 2pcs Riserpipematerial, dimension & quantity copper T2, Φ10*0.5mm, 8pcs Material&thicknessofglass tempered glass:4mm / mistlite tempered glass:4mm / low iron mistlite tempered glass:3.2mm Dimensionofglasssheet mm1988*988 Transmittanceofglass 87% 91% Material&thicknessof theframe Aluminum, δ=0.8mm Aluminum, δ=0.9mm Aluminum, δ=1.2mm Coloroftheframe champagne bronze-colored white Insulationmaterial High pressure high density polyurethane foam Insulationthickness mm30 40 50 Material&thicknessofthe backsheet embossed aluminum backsheet:0.3mm Coversealingmaterial EPDM + metal Packing Carton without any letter Packingdimension (2 pieces in 1 carton) mm2020*1100*160 2020*1100*180 2020*1100*200 20′ft Container 165pcs 145pcs 130pcs 40′ftContainer 340pcs 306pcs 276pcs 40’HQContainer 390pcs 346pcs 306pcs 2) Hot Water Storage Tank Inner tankMaterial SUS304-2B food grade Thickness 0.5mm Out shellMaterial Al-Zn-alloy-coated color sheet Thickness 0.5mm Insulation layerThickness 55mm CFC free polyurethane FrameMaterial Galvanized steel Thickness 1.5mm Inlet outlet dimensionG G1/2’’ Dimension150L 1560mm*470mm*470mm 280L 2910mm
