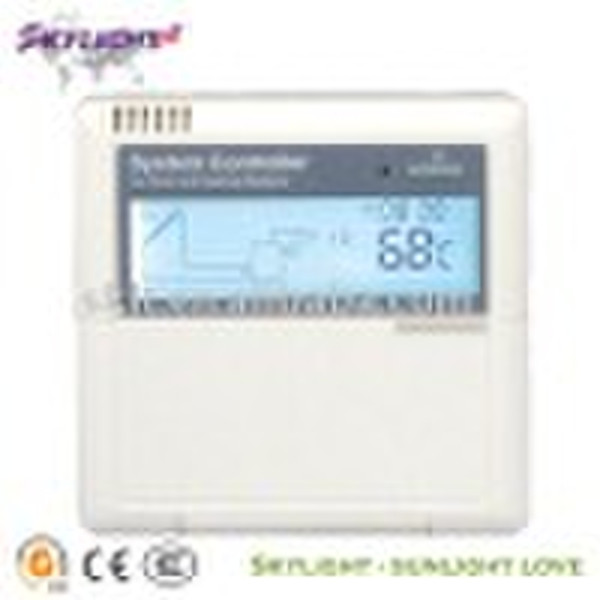

Solar Water Heater Controller

China factory since1998 Best service Excellent Quality Samples Welcome solar controller SR868C8 SR868C8:SuitableforSplitPressureSolarWaterHeater TechnicalData 1.Specification:SR868C8 2.Appearanceofcontroller:120mm×120mm×18mm 3.Powersupply:AC230V±10% 4.Powerconsumption:<3W 5.Accuracyoftemperature:±2oC measuring 6.Rangeofcollector:-10 220oC 7.temperaturemeasuring Rangeoftank:0 110oC 8.temperaturemeasuring Suitablepowerofpump:threepumps,≤600W 9.Suitablepowerof:power≤1500W 10.electricalheater Inputs:1xPt1000sensor(≤500oC)forcollector(siliconcable≤280oC), 2xNTC10K,B3950sensor(≤135oC)fortank,(PVCcable≤105oC), Outputs:3relays,forcirculationpumpsor3-wayelectromagneticvalve 1relayforelectricalheater 11.Ambienttemperature:-10 50oC 12.Waterproofgrade:IP40 MainFunctions 1.MainmenuDTO&DTFTemperaturedifferencefunction 2.Mainmenu-THETtimingheating 3.TEMPTemperaturemainmenu 4.EMEmergencycollectortemperature (emergencyswitch-offtemperatureofcollector) 5.CMXMaximumlimitedcollectortemperature(collectorcoolingfunction) 6.CMNlowtemperatureprotectionofcollector 7.CFRfrostprotectionofcollector 8.SMXMaximumtemperatureoftank 9.RECTankre-coolingfunction 10.CelsiusandFahrenheittemperaturetransferring 11.FUNAuxiliaryfunction 12.DVWGAnti-Legionellafunction 13.CIRCTemperaturecontrolledhotwatercirculationpump 14.BYPRHightemperatureby-passfunction (tanktemperatureautomaticallyadjusting) 15.HNDManualmode 16.PASSPasswordsetting 17.LOADRecoverytofactorysetting 18.ON/OFFbutton 19.Holidayfunction 20.Manualheating 21.Temperaturequeryfunction 22.MemoryProtection 23.Anti-dryheatingProtection 24.Screenprotection 1.System drawing 2.SR868C8 wire connection 3.SR868C8 VS SR868C8Q 4.Packing list
